Garmin GTS855 System

Traffic and Collision Avoidance (TCAS 1)

Install Only
Garmin - New - 010-00962-10

2-year Manufacturer Limited Warranty

From: $21,789.00

Add to Cart

Please call for a customized quote for your aircraft.

Share:

For pilots operating high-performance aircraft in busy, high-density airspace, traffic separation requires a heightened sense of situational awareness — to “see and avoid” in all 3 dimensions. Pilot alertness and vigilance are essential. But for maximum protection, nothing beats having an extra set of “electronic eyes.” That’s why we developed the GTS™ family of ADS-B enhanced Traffic Advisory (TAS) and Traffic Collision Avoidance (TCAS I) Systems.

Featuring our exclusive CLEAR CAS™ technology, these attractively priced systems provide accurate, dynamic traffic surveillance — with ATC-like spoken audio alerts to help pilots quickly respond to potential flight path intrusions from other aircraft.

Separation Anxiety Terminated

Augmenting reports from radar-based air traffic control, the GTS 855 is able to use a synthesis of both active and passive surveillance technology (including 1090 MHz ADS-B “In”) to correlate target data and pinpoint traffic threats. This hybrid active/passive surveillance is enabled with installation of a GTX 330 ES “extended squitter” Mode-S transponder (sold separately), or other complementary class of ADS-B “Out” equipment, such as our GDL 88 datalink.

With this technology, aircraft are able to automatically report and receive more stable, and more detailed, traffic data — including aircraft flight ID, GPS-based positioning, relative altitude and direction of flight. Course trend vectors and vertical climb or descent information can also be shown on compatible displays. Thus, instead of just seeing random targets on a display, pilots can now identify and track specific aircraft flight trajectories with much greater precision. So, in busy airspace, they’re able to fly with a much clearer tactical picture of their immediate traffic situation.

More Integration Means Higher Awareness

Displaying traffic symbols and advisories on a variety of compatible display products in the cockpit, the GTS 855 can track up to 75 traffic targets simultaneously — and depict up to 30 intruder threats at a time, depending on the display being utilized. (There is no dedicated instrument or panel space required for TAS.) Creating a 360° zone of detection around your aircraft, the GTS 855 enables you to quickly see and identify targets in your airspace that may pose a potential collision hazard.

Voice Alerting Helps Keep Heads Up, Eyes Out

In place of the generic “Traffic, traffic” voice alerts of some earlier-generation systems, the GTS 855’s exclusive CLEAR CAS technology provides for expanded audio messaging in an ATC-like verbal format: “Traffic. One o’clock. High (or Low or Same Altitude). Two miles.” If surveillance bearing information is not available on the intruder, “Traffic, No Bearing” is called out.

By vocalizing more specific traffic­-spotting information, pilots can stay “eyes out” while locating the intruder target on the cockpit display.. Sometimes, those vital split-seconds can make all the difference in a fast-converging situation.

Higher Speeds Call for Faster Response

The GTS family of TAS and TCAS I systems offers a full range of traffic surveillance capabilities to fit your specific aircraft and operational criteria.

Recommended for today’s higher-capability cabin class turboprops and business or regional jets, the GTS 855 TCAS I offers 400 W of nominal power output, a +/- 10,000-foot vertical separation maximum, and up to 80 nm of active interrogation range in the forward direction. All GTS units will operate to 55,000 feet. And a Mode-S transponder (sold separately) is required as part of the GTS 855 system installation.

For commuter aircraft (those with 10 to 30 passenger seats), TCAS I capability is required by the FAA. The GTS 855 system meets these stringent TCAS I performance criteria, providing the range and response to give early warning of fast-closing aircraft in high-traffic airspace. Targets are depicted using familiar TCAS-defined symbology. And selectable horizontal display ranges allow pilots to maintain the “big picture” of overall traffic activity in their airspace.

GTS 855 TCAS I: A timely new dimension in collision avoidance.
  • Actively tracks up to 75 targets to 80 nm
  • Satisfies all TCAS I collision avoidance criteria
  • Combines active surveillance with passive (ADS-B) surveillance
  • Generates aural and visual traffic advisories
  • Interfaces with a wide range of displays
  • GTS 855 Processor with TCAS 1 Enablement Coupon

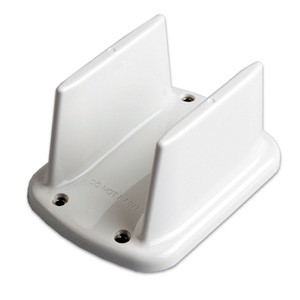

  • GA 58 Direction Antenna (with either TNC or QMA connector)
  • Horizontal install rack
  • Connector kit
Optional:

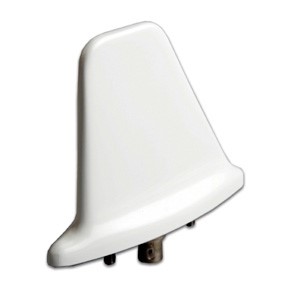

  • Monopole antenna
  • Additional GA 58 Direction Antenna

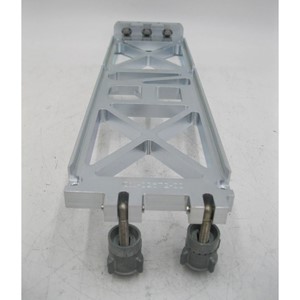

  • Vertical install rack
