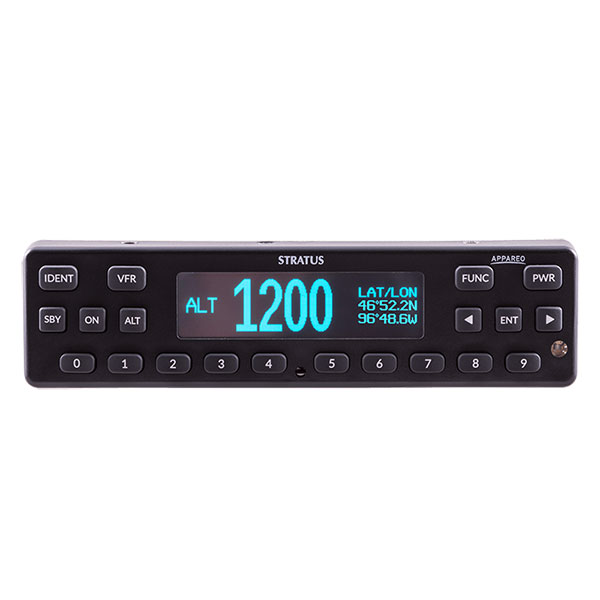

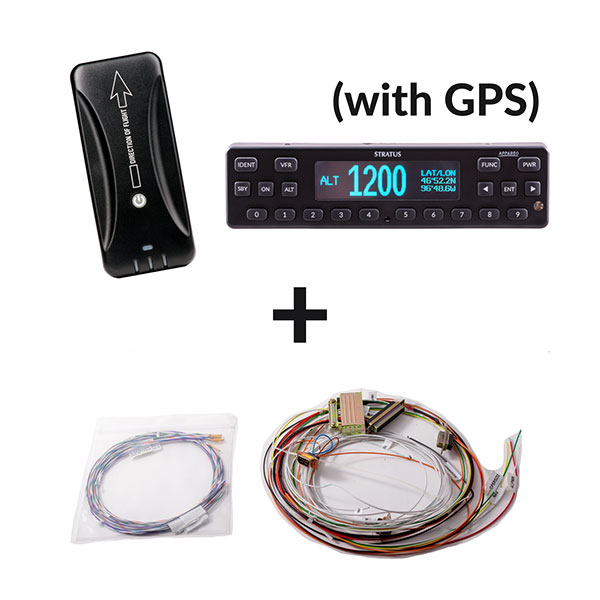

This kit includes a Stratus ES or ESG transponder, a Stratus 3i ADS-B In receiver that was designed to stay plugged into the transponder (tucked behind the panel), as well as a wiring harness so you can have it shipped to your trusted A&P for installation. This bundle is available for a limited time only!

  • 1090ES (Mode S extended squitter)
  • Built-in WAAS GPS (with the purchase of the Stratus ESG)
  • Meets global mandates for ADS-B Out
  • Push-button operation
  • Easy-to-use interface
  • Pressure altitude monitor

  • Bezel Height: 1.69 in. (43 mm)
  • Bezel Width: 6.38 in. (162 mm)
  • Depth: 10.75 in. (273 mm) front of panel to connector backshell
  • Weight: 3.29 lbs. (1.49 kg) including rack and connectors
  • Operating Temperature: -20°C to 55°C
  • Storage Temperature: -55°C to 85°C
  • Power Input: 9.0 to 36.0 VDC, 15 W typical
  • Cooling Input: No fan required
  • Environmental Compliance: DO-160G
  • Software Compliance: DO-178B Level C
  • Hardware Compliance: DO-254 Level C
  • Display: OLED
  • Transmitter Power: 310 W

Parts Included with Transponder

  • 1 - Installation Kit, Stratus ES/ESG
  • 1 - Assembly, Backplate, Stratus ES/ESG
  • 1 - Installation Rack, Stratus ES/ESG
  • 1 - RAMI AV-801 WAAS GPS Antenna (*included with Stratus ESG only)

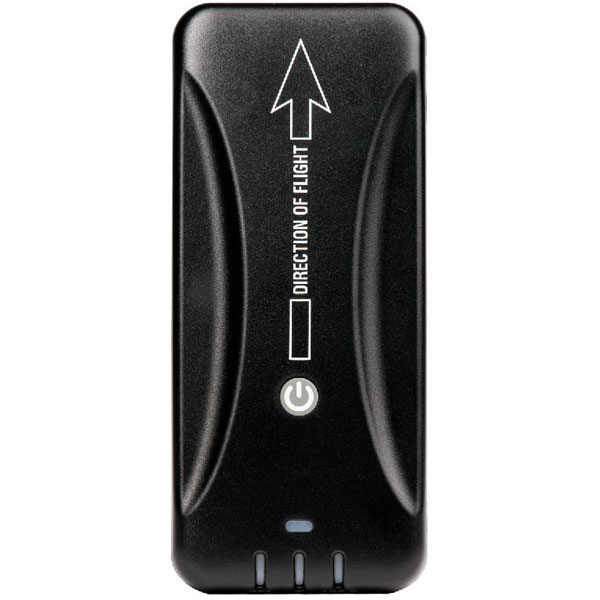

Parts List for Stratus 3i Kit

  • 1 - Stratus 3i Final Assembly
  • 1 - CON PM BNC Jack to Blind Mate Adapter
  • 1 - CON 9 Pin DSUB with Mounting Hardware
  • 1 - MS-151 to BNC Cable – 5 ft
  • 1 - ESG, Right Angle USB Type C to 9 Pin D-Sub, 5 ft
  • 1 - Stratus Window Mount Clip

Parts List for Wiring Harness

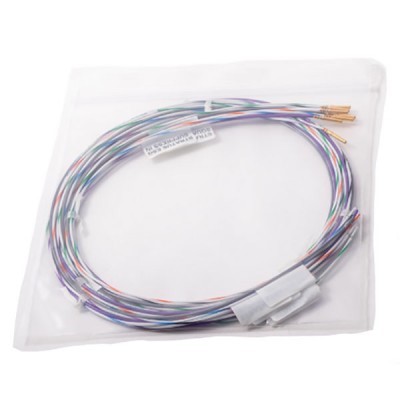

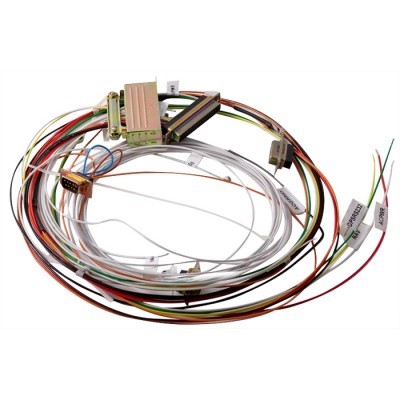

  • 1 - Universal Stratus XPDR Wiring Harness
