Add the Security of AOA Indication

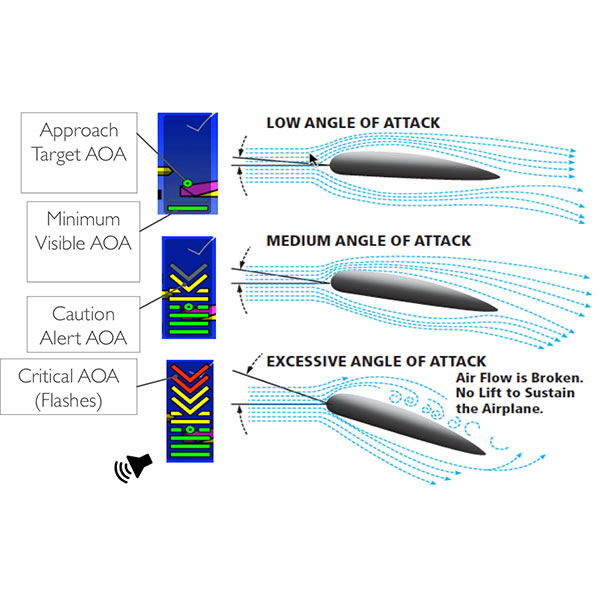

Your angle of attack (AOA) can be a valuable tool in knowing when a stall might occur. When the angle between your aircraft’s wing and the oncoming airflow becomes too great, there won’t be enough lift to support the plane in flight. The Garmin GI 260 AOA indicator is designed to make this valuable AOA information easy to understand with one glance. Unlike systems that rely on lift reserve indication, the GI 260 uses what's known as normalized AOA, which provides the most accurate readout possible in all phases of flight. It provides both visual and audible alerts as a stall becomes increasingly imminent.

Available for Experimental and Certified Aircraft

The GI 260 receives AOA input from a GSU 25 air data computer connected to a GAP 26 probe. Since these are key components of the G3X™ flight display system, pilots of experimental/amateur built aircraft can add the dedicated AOA indicator to their aircraft by connecting as few as 4 wires. For pilots of general aviation aircraft, the GI 260, GAP 26 and GSU 25C can be added as a complete package. A universal inspection plate mount is included to aid in installation.

Each Garmin AOA system includes a GI 260 and GSU 25C:

  • GI 260 Angle of Attack Indicator (p/n 010-01287-00)
  • GSU 25C Air Data Computer (p/n 010-01071-50)
  • GSU 25 Connector Kit (p/n 011-03002-03)
Plus you receive one of the following GAP26 probe options:
  • GAP26 Unheated (Included in system #K10-00202-00)
  • GAP26 Heated / Unregulated (Included in system #K10-00202-10)
  • GAP26 28V Heated (Included in system #K10-00202-20)
