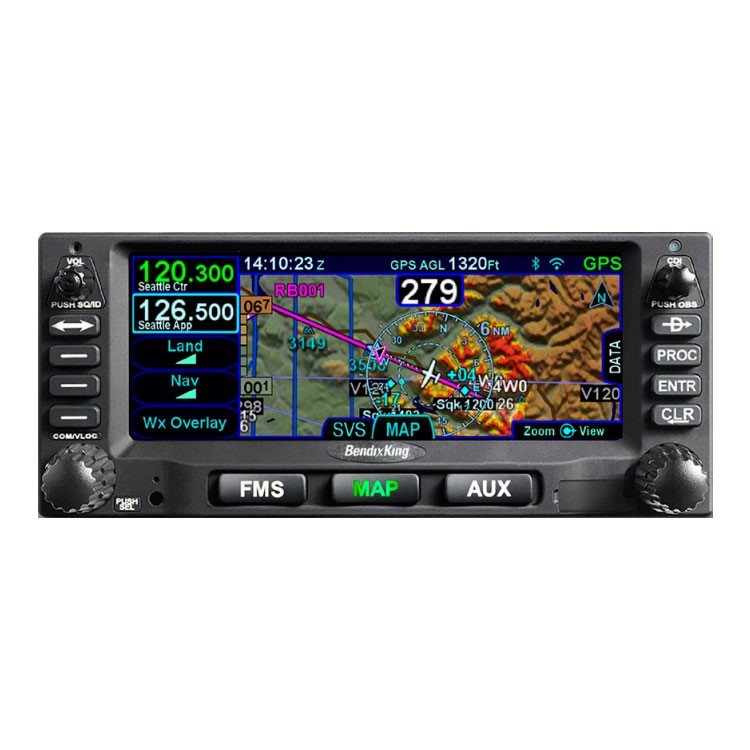

Combining an IFR GPS navigator, integrated TAWS, weather radar display, a 16-watt digital VHF comm and VHF nav/ILS, Bendix/King’s new KSN 770 multifunction display takes the place of up to four separate units. It features a large, high-resolution display and a sleek, ergonomic, intuitive design. The system also includes a comprehensive moving map and a fully certified 24-channel WAAS-LPV GPS navigator. But that’s not the only technology separating the KSN 770 from less worthy systems.
The KSN 770 showcases a full VGA high resolution screen with a larger display area than on previous models. It offers an excellent view of the latest Jeppesen electronic charts and maps, complete with an own-aircraft position overlay.
Based on the graphical user interface found on advanced business jets, our GUI enables graphical flight planning with a cursor control device so simple to use, flight planning and enroute navigation have never been easier.
The KSN 770 includes a complete set of safety system display options that include on board weather radar, lightning, data link weather, TCAS and TAWS-B.
Interface Options
Stormscope- WX-500 (RS-422 Interface)
- Bendix/King: ART 2000, 2100;RDS-81/82
- Bendix/King:TPU-66A, 67A; TPA-81A*, KTA-810,910; KMH-820, 920; KT-73 (TIS)
- Garmin: GTX 33, 330 (TIS), GTS Traffic Systems
- Avidyne: TCAD 9900BX
- Goodrich: TRC899, 487
- Honeywell: MK V*, VI, VII, VIII*, XXI, XXII EGPWS
- Bendix/King: KGP-560; KMH-820,920
- Aspen EWR 50
- Shadin: Fuel Flow Air Data Computer
- Aeronetics: 9100
- Bendix/King: KCS 55A
- Collins: PN101; MCS65; MC102, 103
- Sperry: C14
- Open architecture integrates with a variety of sensors
- Large 5.7” touchscreen and graphic interface
- Hard buttons combined with cursor control and touchscreen provide flexible user interface
- WAAS GPS enroute and approach navigation system
- Nav/Com (10W Com with 16W option)
- Electronic charts and maps
- XM WX interface
- Lightning Sensor interface
- TIS/TAS/TCAS interface
- Weather Radar interface (option)
- Display of Enhanced Ground Proximity Warning System (option)
- Dimensions: 6.25"W x 5.25"H x 10"D
- Weight: 8.5 lbs
- Power: 11-33 VDC
- Screen Diagonal/Display Size: 5.7" Active Matrix LCD
- Resolution: 640W x 480H Pixels (Full VGA)
- Certification: Fully TSO’d (more than a dozen including WAAS TSO-C146b), DO-178B, Level B, Level C and Level D, DO-254, DO-160E
- KSN770 Integrated Navigator with Installation Kit
- KA96 GPS/WAAS Antenna with Installation Kit
- USB-Americas Database or USB-International Database
- KSN Pilot's Guide
- KSN Quick Reference Guide
- Wx Radar Display Enable (included in KSN770-02 and KSN770-04 systems)
- External TAWS Display Enable (included in KSN770-03 and KSN770-04 systems)
