Avidyne DFC90

Avidyne DFC90 Attitude-Based Digital Autopilot

Avidyne’s DFC90 Attitude-Based Digital Autopilot enhances precision of flight and improves safety for your aircraft.

PRESS RELEASE (10/2/2012): Avidyne Announces Certification of DFC90 Autopilot in Cessna 182 Aircraft with Aspen Evolution Pro Displays

DFC90 Autopilot Information

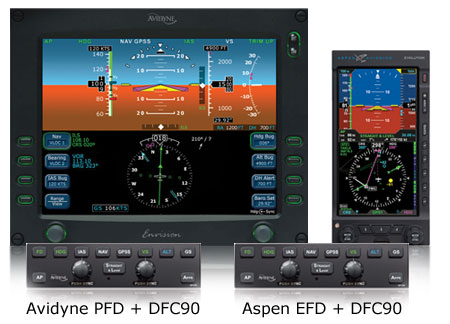

dfc90 DFC90 will utilize either an Entegra EXP5000 or Aspen EFD1000 Pro PFD as the attitude source.

The DFC90 adds the precision of an attitude-based flight control system and Avidyne’s innovative, safety-enhancing EP™ capability.

The DFC90 has all the standard vertical and lateral modes of operation of a turbine-class autopilot system, including Flight Director (FD), Altitude Hold (ALT), Airspeed Hold (IAS), Vertical Speed Hold (VS), Heading (HDG), and Navigation (NAV, APPR, LOC/GS, GPSS).

Customers upgrading from the STEC 55X will notice several major performance and feature improvements including:

  1. Attitude-Based - Greatly improved stability due to the use of attitude data to control the autopilot inner control loops. This is particularly evident and important when tracking an ILS to minimums in windy conditions.
  2. EP™ - Avidyne’s Envelope Protection. Prevents autopilot-induced stalls and overspeeds—which have previously been a major contributing factor in GA accidents—when the autopilot is engaged. EP also provides visual and aural warnings to the pilot.
  3. EA™ - Avidyne’s Envelope Alerting. Available lift and speed margins are calculated constantly in the background, providing visual and aural warnings to the pilot when the aircraft is nearing its normal flight parameters, even when the autopilot is off.
  4. “Straight & Level” Button - Recovers the aircraft from unusual attitudes. Overrides all autopilot modes and levels the aircraft in both pitch and roll from a wide range of capture attitudes for an added measure of safety. S&L button provides added peace of mind—especially for non-pilot in right seat (i.e. Cirrus Parachute).
  5. Indicated Airspeed Hold (IAS) - New vertical mode includes a dedicated Airspeed knob and a new airspeed bug on the PFD. Provides constant speed flight level changes.
  6. Enhanced Fight Director capability of the DFC90 is vastly improved and greatly improves the ability to hand-fly approaches.
  7. Synchronized Heading Bug - With the DFC90, turns are commanded in correlation with the spin of the heading knob. In other words, you can make the autopilot do a right-hand 270 degree turn if you spin the heading knob right 270 deg.
dfc90 autopilot

There are many other improvements, such as a dedicated Vertical Speed knob, pitch hold mode, wide autopilot engagement, additional annunciations in PFD 8.0, a dedicated GPSS button, automatic Back Course Approach selection, multiple color annunciations to indicate armed and active states, intercept mode annunciations, and Avidyne’s hallmark ease of use.

Specifications

Dimensions
  • Width: 6.25" (159mm)
  • Height: 1.5" (38mm)
  • Depth: 10.6" (279mm)
Weight
  • 2.02 lbs (0.92 kg)
Click Here to REQUEST A QUOTE on the Avidyne DFC90
