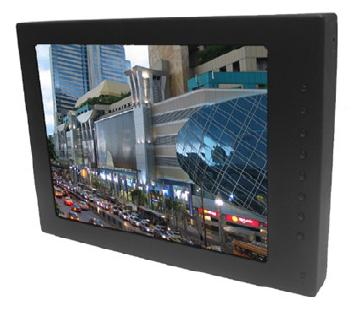

The FD104CV 10.4" LCD is the perfect display for bulkhead mounting where space is at a premium. It has a small mounting area with the minimum of interface equipment required.

It is designed for bulkhead mounting a 7" LCD is too small and a 15" is too big. Built for retrofit installation, this display can switch between three video input sources.

  • High quality SVGA picture for computer graphics and the Moving Map Display
  • Ideal for mounting on bulkheads where wall space is limited
  • Great for watching DVD movies in flight
  • With three input sources, you could install a DVD player, a cockpit camera and the Moving Map display to see aircraft route of flight
  • Easy-to-use buttons on the display let you switch video inputs
  • LCD is crisp and crystal clear with industry-leading brightness
  • Internal cooling fan
  • For safety the LCD is protected with a .06" Lexan non-glare lens. The purpose of this lens is to prevent scratching of the LCD and to reduce glare in direct sunlight.
  • The system includes an IR remote control for changing the video source. You can also order the Universal RF Remote and control everything in the cabin with a single wireless remote.

  • Dimensions: 10.22" x 8.23" x 1.25" (260 mm x 209 mm x 32 mm)
  • Weight: 2.6 lbs (1.18kg)
  • Display Size: 8.375"W x 6.313"H (213 mm x 160 mm)
  • Display Type: 10.4" TFT Color LCD (262,144 colors)
  • Screen Resolution: SVGA 800 x 600
  • Power: 28VDC @ 1.0 amps
  • PC Input: VGA (Analog RGB)
  • Video Input: Composite Video & S-Video
