Electronic International's CGR-30P



CGR-30P Color Engine Monitor


EI is proud to introduce its CGR-30P, the best engine monitor available in the industry. The CGR-30P was designed to replace your aircraft’s tachometer. In addition to replacing your tachometer, our STC’d CGR-30P will replace MANY of your existing primary instruments. Because the CGR-30P is installed in a standard 3-1/8” hole, it doesn’t protrude from your panel or cover adjacent instruments. This gives the CGR-30P a distinct advantage over the competition because it seamlessly integrates into your panel, is easy to install and is the perfect size to fit into any aircraft panel.

Specifications: 3.25” x 3.25” x 4.45” depth. Accuracy: 1/2%. Viewable in direct and indirect sunlight. Backlit for night operation.

Available Functions:

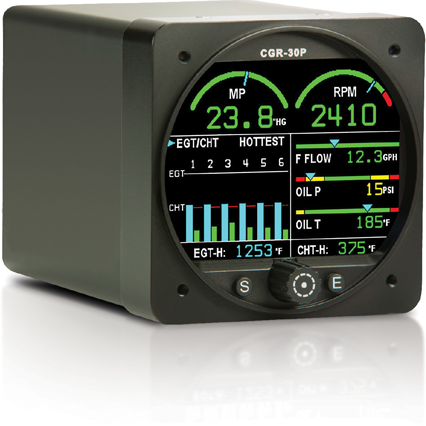

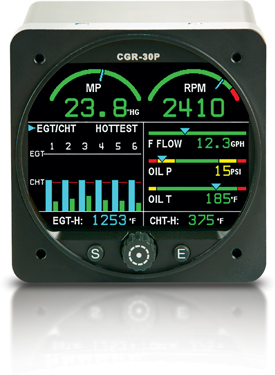

The CGR-30P comes standard with a state-of-theart, fullcolor bar graph which assists with ROP/ LOP leaning. Additionally, the bar graph has both “normalized” and digital readout screens. No other bar graph in the industry comes close to providing the number of options the CGR-30P offers. In addition to its bar graph, the CGR-30P can be configured to display a combination of the functions listed at the right.
RPM
M.P.
EGT/CHT Bar Graph
Oil Pressure
Oil Tempreature
TIT
Hyd Pressure
C.O.
OAT
Vac.
Fuel Pressure
Fuel Level
Fuel Flow
Fuel Remaning
Fuel Used
Fuel -GPS Related Data
Low Fuel Alarm
Recurring Fuel Alarm
Volts
Amps
Flight Timer
Tach Timer
Local Time
Zulu Time
Annuciators
Data Recording
USB Port
External Caution Lights
And More


Secondary Screen

This screen provides six additional functions to be displayed on the CGR-30P, as well as annunciators to display Main Screen alerts.

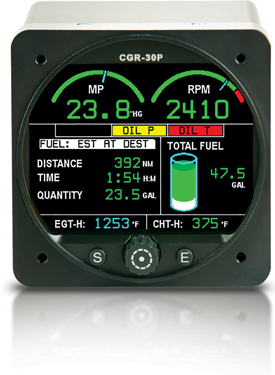

GPS Data Screen

This screen allows you to select between six sets of Fuel Flow, Fuel Remaining and GPSrelated data.

Fuel Quantity Screen

This screen displays the estimated Fuel Remaining for each tank, based on current Fuel Flow.
Available Screens:

In addition to the “Main Screen”, the CGR-30P offers a “Secondary Screen”, a “Fuel Quantity Screen” and a “GPS Data Screen.” These additional screens give the CGR- 30P flexibility not found in any other engine instrument.

Certified As Primary Replacement

The CGR-30P can be configured several ways to fit your aircraft.
Below are common configurations but you can substitute almost ony function.

CGR-30P-4 4-Cylinder Package with RPM, EGT/CHT Bar Graph, Fuel Flow and Volts
CGR-30P-4F 4-Cylinder Package with RPM, M.P., EGT/CHT Bar Graph, Fuel Flow and 3 Fuel Levels
CGR-30P-4O 4-Cylinder Package w/ RPM, M.P., EGT/CHT Bar Graph, Fuel Flow, Oil Temp, Oil Press. and Volts
CGR-30P-6 6-Cylinder Package with RPM, EGT/CHT Bar Graph, Fuel Flow and Volts
CGR-30P-6F 6-Cylinder Package with RPM, M.P., EGT/CHT Bar Graph, Fuel Flow and 3 Fuel Levels
CGR-30P-6O 6-Cylinder Package w/ RPM, M.P., EGT/CHT Bar Graph, Fuel Flow, Oil Temp, Oil Press. and Volts
