Dynon Skyview ADS-B Traffic and Weather

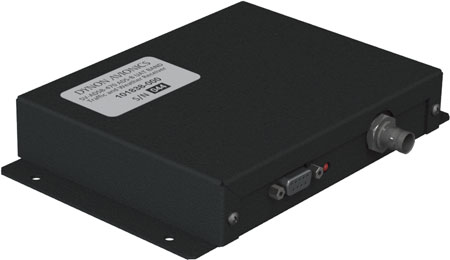

SV-ADSB-470 UAT Band Traffic and Weather Receiver Traffic and Weather for SkyView. The SV-ADSB-470 is a lightweight remote mounted receiver for ADS-BIN information that utilizes an externally mounted antenna for superior ADS-B reception.

ADS-B Weather

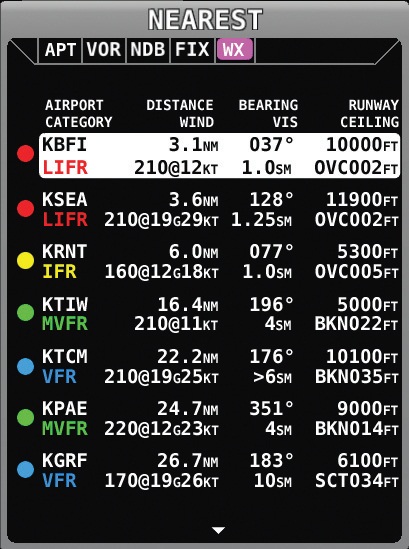

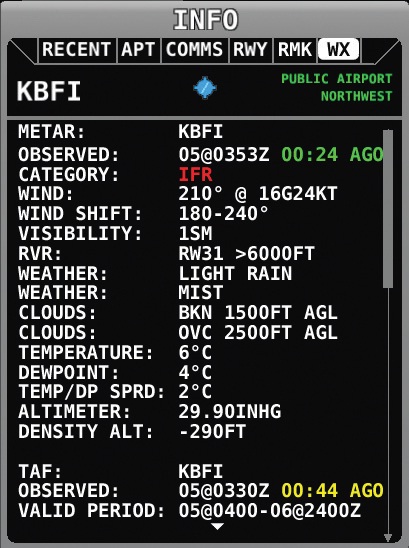

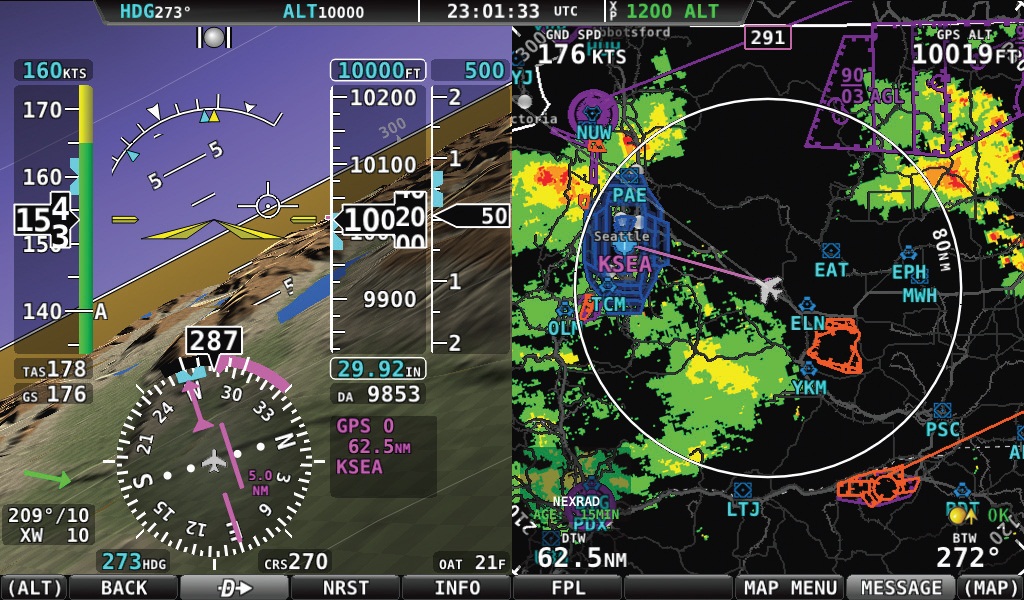

Subscription-free weather displayed on SkyView, including NEXRAD radar, METARs and TAFS. Airport weather data can be displayed for nearest airports or for a specific airport identifier.

ADS-B Traffic
Receives ADS-B TIS-B traffic with precise location, altitude, speed, and direction. Includes both traffic broadcast from other aircraft equipped with ADS-B UAT transmitters, and data broadcast from ADS-B ground stations. (Requires SkyView SVXPNDR-261/262 transponder, currently the only transponder which meets the requirements.)

TFR Information

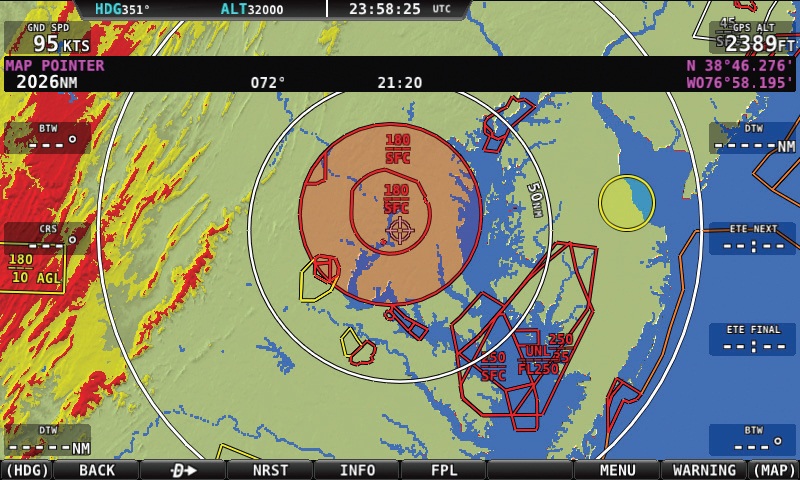

TFR NOTAMs are displayed graphically on the navigation map.
To Obtain This Feature: You Need:
ADSB-B Traffic SkyView System
SV-ADSB-470
SV-XPNDR-261/262
(for complete coverage)
ADS-B Weather and TFRs
(US only in current ADS-B coverage areas.)
SkyView System
SV-ADSB-470
TIS Traffic
(Non-ADS-B. Available today for US in some primary radar coverage areas. SV-ADSB-470 replaces TIS with ADS-B traffic.)
SkyView System
SV-XPNDR-221/222

SV-ADSB-470 Module.
Approximately 7" x 4.5" x 1.1"


Part Number Product Pricing
101838-000 Dynon Avionics SV-ADSB-470
UAT Band Traffic and Weather Reciever
Call For Price
Expected Availability: Fall 2012
