Com Antennas

CI-108

Designed for high-performance aircraft applications. Suitable for either top or bottom mounting. Solid Polyurethane construction for strength, reliability and durability. White Polyurethane finish is Skydrol and rain erosion resistant.

CI-109

Exhibits excellent electrical characteristics and incorporates an aerodynamically shaped mounting base and radiator housing that matches the styling of the communication antennas used on the 1968-72 single engine Cessnas.

CI-119

Frequency 118-137 MHz
Designed for large single or twin-engine aircraft. The antenna assembly enclosed in an aerodynamically shaped, injection molded polyester glass shell with internal components foamed in place for mechanical integrity. Reduced height convenient for mounting to the underside of an aircraft. The 119 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.

AV-520

The AV-520 is a “V” style VOR/LOC/GS antenna utilizing detachable painted stainless steel elements and internal balun transformer. The antenna is rated at speeds up to 350 mph and altitudes up to 50,000 feet. It is a direct replacement for the CI 159C.

CI-121

Similar to the CI-109, the CI-121 is smaller in diameter and lighter at only 0.5 pounds. Features a tapered glass laminate housing and die-cast aluminum base. Offers standard mounting and appearance to many Cessna communication antennas.

AV-10

This antenna is a direct replacement for the CI 121. The AV-10 is designed for high-performance aircraft applications. It exhibits excellent electrical characteristics and incorporates an efficient aerodynamic 4-bolt mounting base. The antenna essentially matches the styling of the communication antennas currently used on most singles and light twins.

AV-17

This antenna is a direct replacement for the CI 122. The AV-17 is designed specifically for mounting to the underside of an aircraft, providing an excellent radiation pattern for air-to-ground communications. It has a 4-bolt mounting base and is low in profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft.

CI-122

Designed specifically for mounting to the underside of an aircraft providing excellent radiation coverage for air-to-ground communications. Bent configuration makes it ideally suited for helicopters and low wing aircraft.

CI-139

Piper compatible mounting version of the CI-119 with respect to the mounting hole pattern and RF connector location. The CI-139 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.

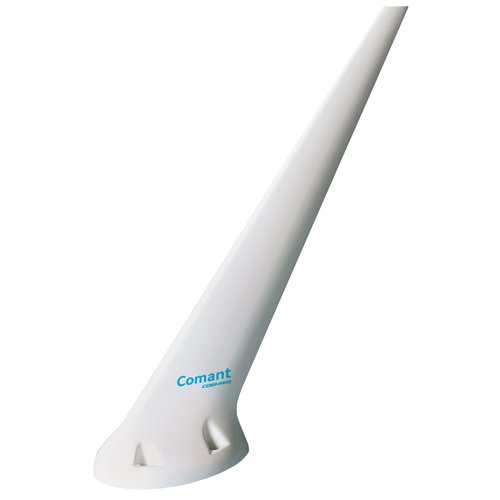

CI-268-60

The CI 268-60 uses the same radome as Comant's multi-function ComDat antennnas. After adding a ComDat combination antenna, many owners like to match the look for their other VHF antenna. This is the answer. Whats more, the CI 268-60 shares the same footprint and offset connector location as the popular CI 238 which is no longer in production.

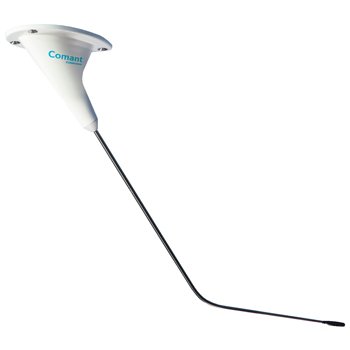

CI 292-3

Designed to provide 2.5:1 VSWR or better over a bandwidth of 138-174 MHz. Features a high-strength die-cast 3-hole aluminum base. Radiating element is a bent-whip tapered stainless steel rod suitable for bottom mounting. The CI-292-3 has been re-tested and upgraded to the new RTCA DO-160B environmental requirements.

CI-292-2

Identical to the CI-292-1 except that it provides a stainless steel bent-whip radiator which makes it ideal for helicopters and bottom mounting underneath fixed wing aircraft. The CI-292-2 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.

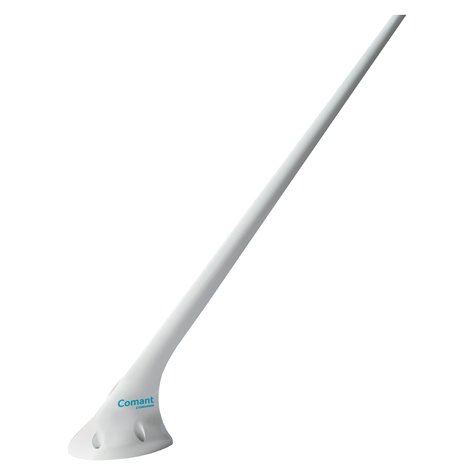

CI-2480

Available versions: CI-2480-200 and CI-2480-201.

All new design shares the popular CI 248 style. Combines both GPS and VHF Com functions in a single footprint. Same 4-hole mounting dimensions as popular VHF antennas.

K220A

The K220A communications whip antenna is a 30-inch VHF antenna with included magnetic base mount. Works in conjunction with Icom IC-A110 and IC-A210 radios.

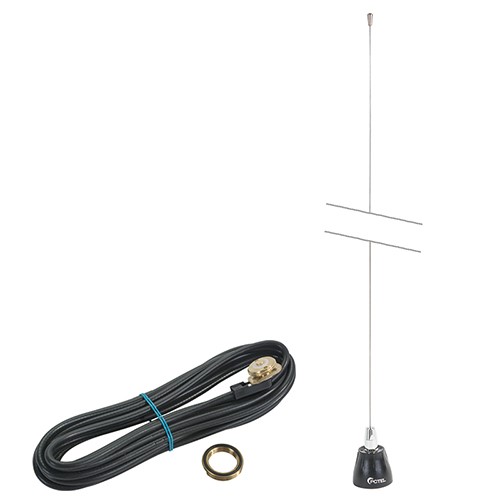

K220C

The K220C is a roof mount antenna to accompany the ICOM A-110-05 vehicle mount transceiver.
