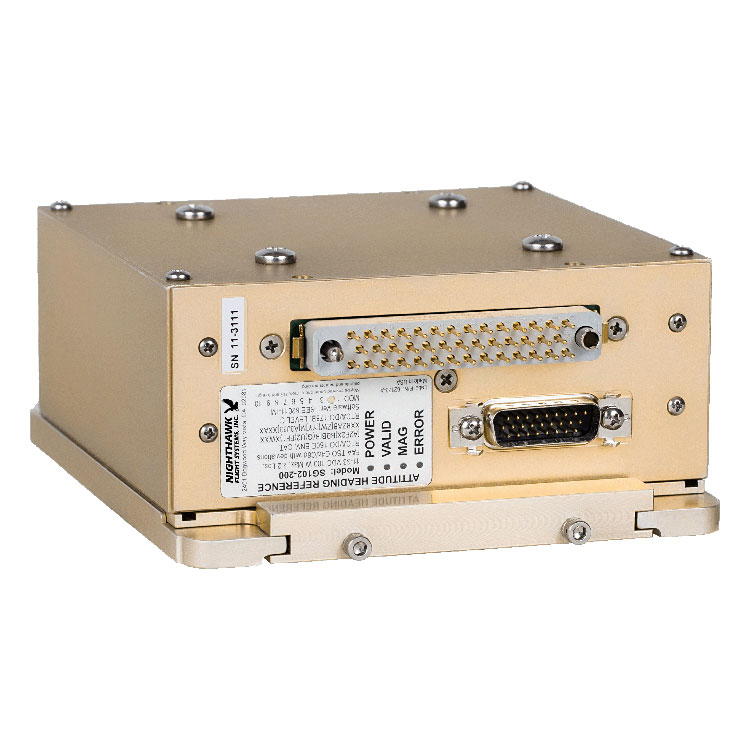

The SG102 Attitude Heading Reference System (AHRS) is a solid-state three-axis instrument certified for primary heading reference. Pitch and roll information is also provided for stabilization of other equipment such as weather radar, FLIR cameras, etc.

Designed as a plug-compatible replacement for the Bendix/King KG 102, the SG102 is ideally suited as an upgrade for existing Bendix/King KCS 55A compass systems. A full set of heading outputs (XYZ, ARINC 429 and RS-232) is also available to allow upgrade of other common directional gyros. Weighing just over two pounds, the SG102 system also includes a Sandel-designed sealed magnetic transducer (magnetometer) for stabilized magnetic heading.

Offering a superior approach to inertial reference, the Sandel SG102 continues our tradition of innovative, modular solutions that enable you to easily and affordably upgrade your aircraft.

  • Certified for primary heading reference
  • Compatible with all common directional gyro interfaces
  • Pitch and roll output for auxiliary applications requiring stabilization
  • >10,000 Hours MTBF, Calculated

Included:

  • 9022X-C - SG102-XXX
  • 82011-PG - SG102 Pilot’s Guide
  • 90171-K01 - SG102AHRS Install Kit
  • 82012-D - MT102-300 Magnetic Transducer
Not Included:
  • 90237-A - KG102 Pin Kit
  • 90230-A - SG102 Maintenance Adapter
  • 88128-A1 - MT102 Calibration Extender Cable
