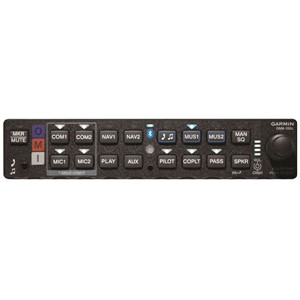

Garmin GMA-350

All Digital Audio Panel

Install Only
Garmin - New - 010-00871-21

2-year Manufacturer Limited Warranty

$1,749.00

Telligence™ Voice Command now STC approved for the GMA 350.

Share:

The first truly all-digital audio panel, Garmin’s GMA 350 introduces a number of new technologies to the cockpit, including Telligence™ Voice Command, 3-D audio processing, advanced auto squelch and more.

Listen in Virtual 3-D

Advanced processing in the GMA 350 adjusts audio in the headset to mimic how the human ear normally hears and registers sounds in space. This 3-D Audio feature makes it seem as though different audio sources are coming from different directions around you. Now it's much easier to focus on and understand one particular source from among many. For example, COMM 1 will seem to be coming from the left while COMM 2 may seem to be coming from the right.

Operate Hands Free

With built-in Telligence Voice Command, the GMA 350 helps decrease pilot workload. You can now operate your audio panel without taking your hands off the controls. To do something like switching between COMMs, just press a dedicated “push to command” button on the flight controls and say “MIC 1” or “MIC 2.”

Distribute Audio Around the Cockpit

The GMA 350 makes in-flight entertainment easy. The system allows you to permanently wire up to two dedicated input sources into the rear connectors, like your XM satellite music receiver and an auxiliary music device. A 3.5 mm jack on the front also provides easy access for portable audio devices like MP3 players or mobile phones. With the GMA 350’s “blue-select” mode, the pilot can control which headset positions have access to which audio sources – your passengers can enjoy music while you listen to radio communications or make private full-duplex telephone calls. The system’s intuitive front panel layout features cursor control and volume indicator for easy operation.

Experience Advanced Auto Squelch and Automatic Volume Control

The auto squelch capability in the GMA 350 has been radically redesigned and automatically adapts to a quiet or noisy cockpit without clipping words or cutting out in the middle of phrases. An internal microphone also senses ambient noise and adjusts the cockpit speaker volume level accordingly. By analyzing the ambient noise level, the system can also adjust audio volumes for the headsets (when configured to do so at the time of installation). This means your system alerts won't be so loud while you're still on the ground.

Enjoy Advanced Features

A handy split COMM mode allows the pilot and copilot to select independent frequencies to broadcast on. And should you ever miss an ATC call or frequency assignment, don’t worry -- Garmin’s automatic digital voice recorder is also built in, which continuously captures the last 2.5 minutes of audio for playback.

  • Intuitive front panel layout with cursor control and volume indicator
  • Six/Seven position intercom: pilot, copilot, four or five passengers
  • Three stereo headset amplifiers: pilot, copilot, and passengers
  • Two stereo music source inputs
  • Five selectable intercom operational modes
  • Independent pilot, copilot, and passenger volume controls
  • Individual VOX processing for each mic input
  • Automatic selection of radio audio source when corresponding mic is selected
  • Split COMM transceiver function. Copilot may transmit and receive on one COMM while pilot transmits and receives on another.
  • Voice recognition
  • Automatic audio adjustment for ambient noise
  • 3-D Audio
  • Marker beacon receiver with lamp driver outputs

Physical & Performance:

Unit dimensions, WxHxD: 6.25”W x 1.30”H x 7.80”D (15.9 x 3.3 x 19.8 cm)
Weight: 2.4 lb (1.1 kg)

Other:

Telephone interface: dedicated full-duplex tel interface (no PTT keying required)
ICS (intercom system): 6 to 7 position intercom (individual VOX processing for each mic position)
ICS isolation modes: 5 - All, Pilot, CoPilot, Crew/Pass, None
Transceivers: 2 - COM1, COM2
Additional receiver inputs: 5 - NAV1, NAV2, AUX1, AUX2, AUX3
Music source input: 2 stereo music source inputs
Music input impedance: rear pins: 600 Ohms; front panel jack: 5 kOhms
Music frequency response: 20Hz - 20kHz
Speaker output: 28V aircraft — 10W into 4 Ohms, 7W into 8 Ohms; 14V aircraft — 3W into 4 Ohms
PA function: pilot selectable — requires pressing and holding SPKR button to change state
Marker beacon: dual sensitivity
Manual squelch: yes
Automatic squelch: yes
SmartMute (includes SmartMute marker audio muting): yes
Intercom volume controls: yes
Manual VOX level controls: 1 (shared threshold, individual processing)
Avionics squelch (squelch processing for noise reduction): yes
Split com (CoPilot transmits and receives on Com2 while Pilot transmits and receives on Com1): yes
Failsafe (connects Pilot PTT, mic and headset to COM1 if unit is turned off): yes
Clearance recorder: yes
Alert/Unswitched inputs: 5
Front panel jack : yes (3.5mm - smartphone compatible)
Front panel music volume control: yes (music and telephone volume controls)
TSO Authorization: yes
