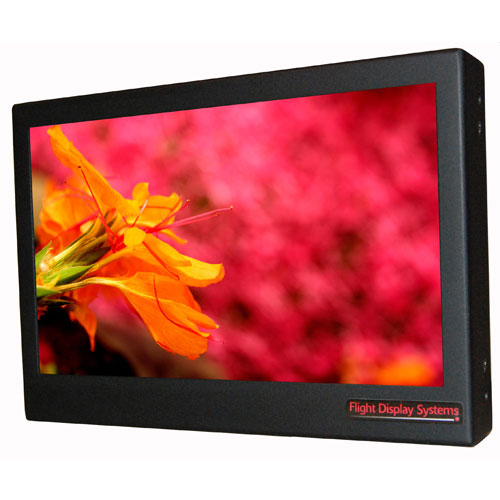

Flight Display Systems FD70CV-M

This unit is ideal in situations where bulkhead space forward and aft is limited. The compact metal enclosure makes it easy to mount directly to the bulkhead or build into the cabinet wall.

• Built for retrofit installation with a compact metal enclosure for increased flexibility
• No expensive switching required, three inputs included
• VGA for the Flight Display Moving Map and computer graphics
• 2 composite inputs for DVD, Glareshield camera, and more
• Controls on unit or use the included IR remote to switch video source, adjust preferences, etc.
• Extremely wide viewing angle allows multiple passengers to watch the same monitor
• Crystal clear LCD with industry leading brightness

• FAA/PMA Approved
• Dimensions: 6.8”W x 4.75”H x 1.20”D
• Weight: 1.6 lbs
• Display Size: 5.89” x 3.5”
• Display Resolution: WVGA 800x480
• Supported Resolutions: 640x480 - 1600x1200
• Aspect Ratio: 16:9 Widescreen
• Display Type: 7” TFT LCD
• Brightness: 400 cd/m2
• Power: 12 - 28V @ 1.0Amps - .4Amps
• PC Input: VGA (Analog RGB 15 pin D-sub)
• Video Input: 2 Composite Video
• Video Type: NTSC/PAL
• Screen Control: On-Screen Display Menu
• Remote Control: IR, included
