A .40" thick 10.4" LCD! It is hard to imagine. The FD104CV-LP is the thinnest LCD display available for in-flight entertainment. Imagine how simple this makes the installation requirements. Just use the mounting holes inside the LCD bezel and screw the display directly to the bulkhead. Since the display is only .40" deep, it can be mounted anywhere and seat clearance will not be an issue.

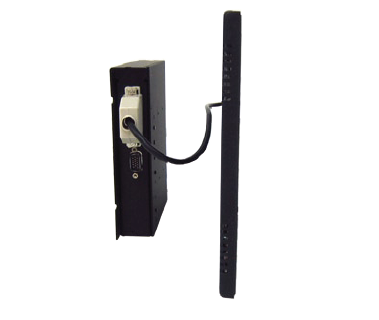

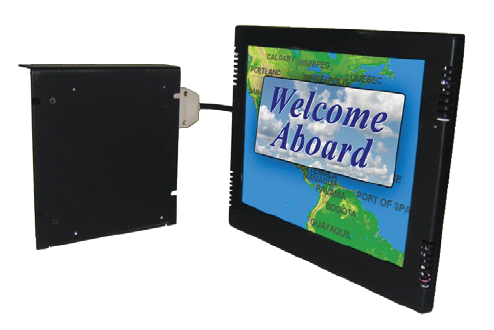

The secret to Flight Display Systems' low profile display is that they have removed all the electronics from the LCD screen and placed them in a remote Detached Electronics Box (DEB) that can be installed over 48" away from the LCD. Simply mount the LCD on the bulkhead and install the remote box someplace behind the bulkhead wall.
- Ideal for mounting on bulkheads where depth of the LCD would otherwise cause a clearance problem with the seats
- Great for watching DVD movies in flight
- Easy installation greatly decreases installation time, downtime and cabinetry modification costs
- State of the are 10.4" display in the cabin with a 176 degree viewing angle from all sides
- LCD is crisp and crystal clear with industry-leading brightness
- High quality SVGA picture for computer graphics and the Moving Map DisplayWith three input sources, you could install a DVD player, a cockpit camera and the Moving Map display to see aircraft route of flight
- The system includes an IR remote control for changing the video source. You can also order the Universal RF Remote and control everything in the cabin with a single wireless remote.
- For safety the LCD is protected with a .06" Lexan non-glare lens. The purpose of this lens is to prevent scratching of the LCD and to reduce glare in direct sunlight.
- The FD104CV-LP can be connected to existing video switching in the aircraft
- Dimensions (LCD): 10.0" x 8.18" x 0.40" (254 mm x 208 mm x 10 mm)
- Dimensions (DEB): 6.0" x 6.5" x 1.30" (152 mm x 165 mm x 33 mm)
- Weight (LCD): 2.65 lbs (1.2kg)
- Weight (DEB): 1.15 lbs (0.522kg)
- Display Size: 8.375"W x 6.313"H (213 mm x 160 mm)
- Display Type: 10.4" TFT Color LCD (262,144 colors)
- Screen Resolution: SVGA 800 x 600
- Power: 28VDC @ 1.0 amps
- PC Input: VGA (Analog RGB)
- Video Input: Composite Video & S-Video
