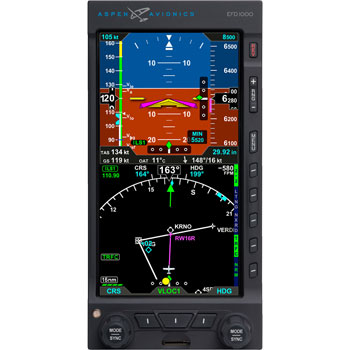

The EFD1000C3 Pro PFD meets the Level B software assurance levels required for FAR Part 23 Class III aircraft. The increased safety, reliability and functionality of the Aspen system are now available to operators of piston and turbine aircraft between 6,000 and 12,500 pounds. The Evolution system is the most affordable and flexible digital solution for owners and operators looking to upgrade larger, often fleet-based, aircraft to a glass panel.
The EFD1000C3 Pro PFD gives you all the tools you need to fly safely and easily in instrument conditions, at a breakthrough price.
Built upon a robust, solid-state technology platform, the EFD1000C3 Pro PFD has features such as integrated GPS Steering, digital HSI with dual bearing pointers and moving map. Aspen is also offering Evolution packages that bundle Multi-function Flight Displays (MFDs) with the PFD. The EFD1000 MFD and 500 MFD both support hazard awareness features like weather, traffic and Stormscope, as well as Charts and Geo-referenced Airport Diagrams. The 1000 MFD also includes fully redundant ADAHRS sensors. In the event of PFD failure, a simple push of the REV button converts the 1000 MFD to a fully functioning PFD.
The Evolution system is your solution for increased safety, improved reliability and reduced pilot workload. A key benefit for owners and fleet operators is freedom from the recurring costs of overhauling aging mechanical gyros, reducing overall operating expenses.
Ease of Installation
The Evolution flight displays are an innovative, modular system that slide into the existing 3-inch instrument holes in any instrument panel. A universal bracket provides easy surface mounting. The system can optionally be flush mounted. This unique system dramatically reduces installation time and cost.
The modular Evolution platform allows for easy expansion. The integrated displays mount side-by-side in one, two, and three display configurations for supreme flexibility and upgradability.
- Software certified to Level B assurance levels for FAR Part 23 Class III aircraft operations
- Solid-state Attitude and Heading Reference System (AHRS)
- Backup battery and emergency GPS with 30 minutes of backup time
- GPS flight plan map views, choose from 360º or Arc view
- Full electronic Horizontal Situation Indicator (HSI) with dual bearing pointers
- Electronic Attitude Director Indicator (ADI) with airspeed and altitude tapes
- Approach mode with lateral and vertical deviation indicators and approach minimums alert
- Integral GPS Steering(1)
- Altitude alerter
- Dual GPS and dual VHF nav support
- Autopilot & flight director integration
- Display of real-time winds aloft, OAT, TAS, and ground speed(1)
- Moving map that displays GPS flight plan legs, curved flight paths(1), waypoints, navaids and airports
- Brilliant, direct sunlight-readable, 6-inch 760x400 TFT active matrix LCD display (140 pixels/inch)
General Specifications:

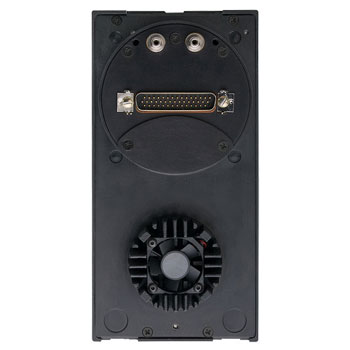

EFD1000C3 Pro PFD Display Assembly
| Width: | 3.50 in. (Measured at Bezel) |
| Height: | 7.00 in. (Measured at Bezel) |
| Can Depth: | 4.15 in. (Rear of Bezel to Rear of Can) |
| Overall Depth: | 6.35 in. (Knob to Rear Pressure Fitting) |
| Weight: | 2.9 lbs (with Mounting Bracket) |
| Display Type: | 6.0” Diagonal TFT Active Matrix LCD (400x760) |
| Display Colors: | 32,768 |
| Face: | Anti-Reflective Coated Glass |
| Backlight: | High Intensity White LED |
| Rotary Knobs: | Optical Encoder with Momentary Push |
| Dimming: | Manual & Automatic (Front Bezel Mounted Sensor) |
Operational Specifications:
| Operating Temp: | -20°C to +55°C |
| Storage Temp: | -55°C to +85°C |
| Max Un-Pressurized Operating: | 35,000 |
| Cooling: | Integral Fan |
| Max Humidity: | 95% at 50°C |
| Input Voltage: | +8 to +32 Volts DC |
| Max Current: | 2.4 Amps @ 28 Vdc 4.8 Amps @ 14 Vdc |
I/O Specifications:
| ARINC 429 Inputs: | 5 Low Speed |
| ARINC 429 Outputs: | 1 Low Speed |
| RS-232 Inputs: | 5 |
| RS-232 Outputs: | 3 |
| Pitot / Static | Quick Connect |
Certification Specifications:
FAA Technical Standard Orders: C2D, C3D, C4C, C6D, C8D, C10B, C106, C113
Software: RTCA DO-178B Level B
Environmental: RTCA DO-160E
Categories: See Environmental Qualification Sheet
Remote Sensor Module (RSM)
| Width | 2.65 in. |
| Length | 4.40 in. |
| Height | 1.00 in. |
| Weight | 0.2 lbs |
| Input Voltage | Provided by PFD |
| Max Current | Included in PFD Current |
Analog Converter Unit (ACU)
| Width | 5.75 in. (including mounting flange) |
| Length | 4.30 in. (including connector) |
| Height | 1.60 in. (including mounting flange) |
| Weight | 0.8 lbs |
| Input Voltage | +10 to +32 Volts DC |
| Max Current | 0.5 Amps @ 28 Vdc 1.0 Amps @ 14 Vdc |
| Interfaces | ARINC-429 and RS-232 |
Features and specifications subject to change without notice.
- Display assembly
- Configuration module
- Remote sensor module
- Analog converter unit
- Installation kits
- Pilot document kit
