The EDM-900 has a built-in EDM-800 plus many other gauges in combination together.  The reliability and ingenuity of many JPI products are bundled together in one spectacular "all-in-one" instrument.  Your EDM-900 will be monitoring your engine conditions four times per second and will warn you instantly if any measurement exceeds the programmed limit. Fly with confidence as your EDM900 acts as your on-board flight engineer.

  • GPS input/output to all GPS's including handheld
  • Over 40 functions displayed and recorded including fuel level
  • Proven data recording once every 6 seconds
  • Specifically configured for your aircraft per the POH

  • Dimensions: 4.53" x 3.32" x 0.5" deep

Hardware Included:

  • EDM-900 all-in-one bright VGA display
  • Pre-wired harness for all functions
  • All EGT/CHT probes
  • Oil pressure transducer
  • Oil temperature sensor
  • OAT sensor
  • RPM sensor, one required
  • Manifold pressure transducer
  • 100 amp shunt (2)(for amps)
  • Volts pick-up V-1 and V-2
  • 2GB memory download/upload stick
  • FloScan fuel flow transducer w/firesleeve
  • Demo DVD

Functions Included:

  • RPM Engine
  • MAP Manifold Pressure
  • % HP Percent of Horse Power
  • EGT Exhaust Gas Temp
  • CHT Cylinder Head Temp
  • O-T Oil Temperature
  • O-P Oil Pressure
  • F-P Fuel Pressure
  • OAT Outside Air Temp
  • VDC Voltage
  • AMP Current amps/load
  • GPH Gallons per Hour
  • REQ Required to wp or destination
  • USD Fuel used
  • MPG Miles per Gal
  • L-R Main Fuel Quantity, level
  • CLD Shock Cooling on All cylinders
  • DIFF Gami spread high low fuel flow
  • USB Memory stick 2GB
  • Data Recording 800 Hrs every 6 sec
  • EZTrends Graphing Software free

Available Options:

  • Fuel Pressure (Transducer & Harness)
  • Amps - 2
  • Volts - 2

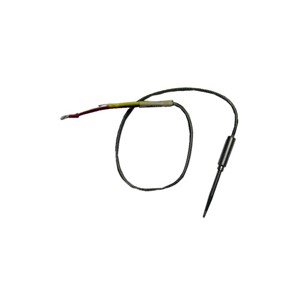

  • TIT 1 & 2
  • CDT (Compressor Discharge Temperature)
  • IAT (Induction Air Temperature)
  • Diesel MAP to 105 in hg
  • Diesel RPM
