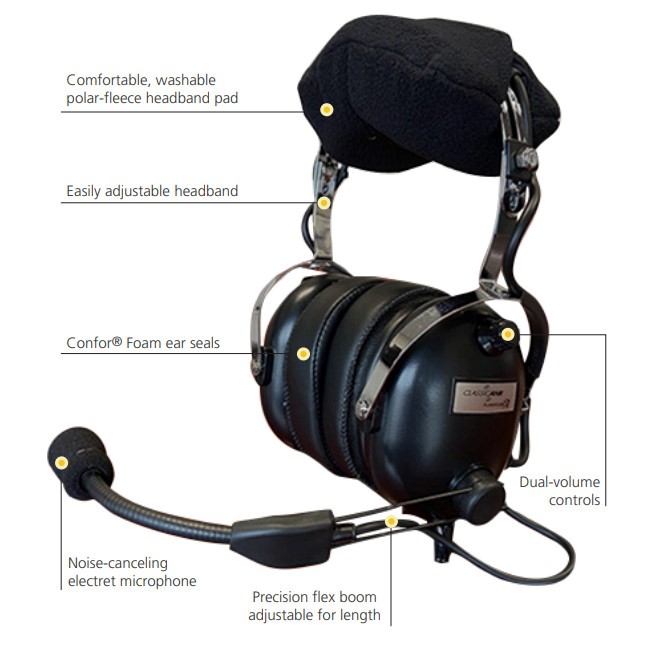

The Classic ANR is built with comfort features not found in similar headsets. With overstuffed Confor® foam ear seals and an improved larger than normal headband pad, larger than normal headband, the classic aviation style provides extended comfort and performance.

  • Precision flex boom with noise canceling electret microphone
  • Dual-volume controls allow for independent volume adjustment in each ear dome
  • Chrome headband with a washable polar-fleece headpad
  • Stereo/mono switch ensures audio compatibility
  • In-line, “drop-and-go” 9-volt battery
  • Provides an additional 14-18dB noise attenuation at key low frequencies
  • Mic muff and carrying case included
  • Weighs 18.5 oz.
  • 3-year warranty

Headset

  • Sensitivity ANR Off: 98 dB re .0002 microbar @ 1000Hz, 1mW
  • Sensitivity ANR On: 110 dB re .0002 microbar @ 1000 Hz, 1mW
  • Frequency Response: 20-10,000 Hz +/- 10 dB in 6cc coupler
  • Impedance: 300 ohms nominal, 150 to 1200 ohm source
  • Weight: 18.5 ounces without comm cable
  • Weight of comm cable: 4.0 ounces
  • Shielded cable: Full floating with independent ground

Microphone

  • DC Bias Supply: 8 to 16 volts, not polarity sensitive
  • Source Resistance: 220 to 2200 ohms
  • Output Voltage: 370 mV @ 114 dB spl re .0002 microbar
  • Frequency Response: Optimized for speech clarity and noise reduction
  • Maximum Ambient Noise Level: 120 dB spl re .0002 microbar
