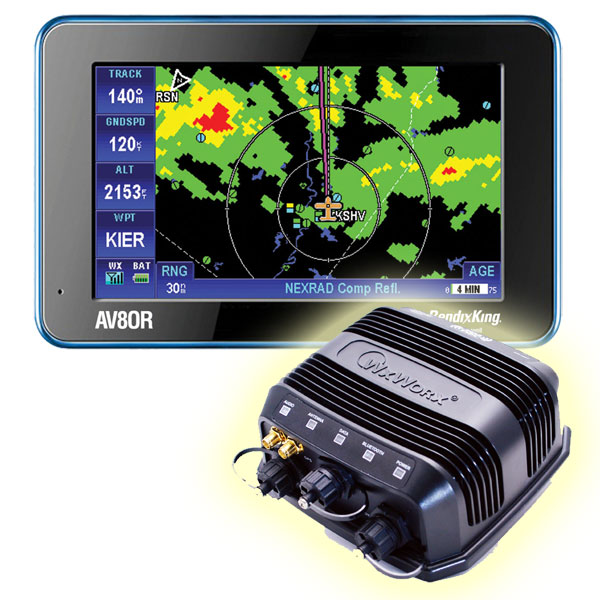

Bendix King AV8OR HANDHELD with XM WxWorx Bundle

Handheld MFD + WxWorx Bluetooth Weather Receiver

Not Shippable
Bendix King - Discontinued - KAV0080-01/AWR10B



The new Bendix/King AV8OR™ Handheld Multi-Function Display takes you to the airport, provides airborne weather (requires optional WxWorx XM receiver), guidance en route to your destination and even provides entertainment along the way. Each of these functions is easily accessible from AV8OR’s Main Menu page. Designed by pilots, for pilots, the AV8OR’s exceptional graphical user interface means that you’ll spend less time entering data and more time piloting.

AV8OR is much more than a simple GPS. It’s the perfect traveling companion with built-in music, picture and movie playing capabilities and dual Bluetooth® interfaces for alternate devices such as a cell phone, XM Weather Receiver, or alternate GPS Receiver. Whether for business or pleasure, the AV8OR delivers the information you want, when you want it – all in an easy to use and easy to read, affordable package.

AV8OR’s innovative features push beyond traditional handheld GPS systems. AV8OR's large 4.3-inch diagonal, high brightness touch screen sets a new standard for portable systems. AV8OR’s Touch-and-See feature lets you identify and get critical information for objects on the map with a simple tap on the screen. AV8OR’s Touch-and-Drag feature makes panning the map a simple, one touch operation. AV8OR’s Smart Profile view lets you plan ahead with a vertical profile view of terrain, airspaces and obstacles on your course.

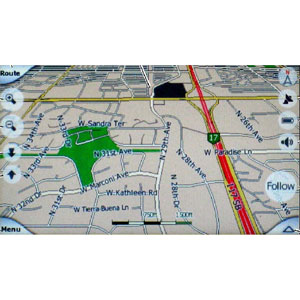

AV8OR’s built-in automotive navigation system provides both 2D and 3D navigation views to get you where you need to go in the most efficient way possible (Figure 1.5). With more than10 million Points of Interest (POI) in the U.S. and two million POIs in Canada included in the automotive database, you’ll always be able to find the nearest shopping, restaurants, gas stations and more. And there’s no need to keep downloading different regions, AV8OR’s 4GB SD Card comes pre-loaded with both aviation and automotive databases for the entire U.S. and Canada or Europe. Additionally, AV8OR’s built-in speaker provides text-to-voice prompts, so you won’t have to take your eyes off the road.
  • Small and sleek yet hosts a large 4.3-inch diagonal display

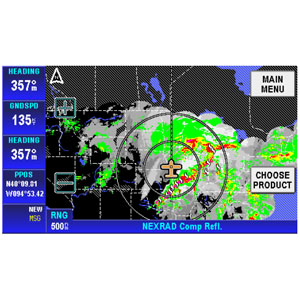

  • External interface to access XM weather information and overlay data on flight plan

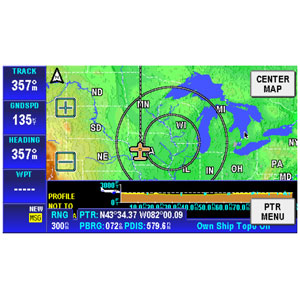

  • Moving aviation map with vertical profile display of terrain
  • Moving automotive map with text-to-speech voice prompts
  • 20-channel SiRF III GPS receiver capable of receiving WAAS
  • Satellite signals within 5 meters of accuracy
  • Adjustable, high-brightness 150 fL LCD with 480 X 272 pixels
  • Touch screen virtual keyboard for efficient user interface
  • Powered by a new 400 MHz 2443 processor
  • 4-Gigabyte data card containing databases for the entire US/Canada or the entire Europe region
  • Spare room for personal files
  • Easily connected to a home or work PC for quick downloads of files or new databases and uploads of flight plans
  • Logged flights can be viewed from programs such as Google Earth
  • Multi-use: Aviation - Auto - Entertainment
  • MP3 Player, Movie Player, Electronic Books, Photo Viewer and more
  • Multiple Bluetooth interfaces for: cell phones, XM Weather Receiver, Alternate GPS Receiver
  • Dimensions (w/ 800 mAh battery): 5.04"W x 3.23"H x 0.86"D (12.8 x 8.2 x 2.2 cm)
  • Dimensions (w/ 1600 mAh battery): 5.04"W x 3.23"H x 1.14"D (12.8 x 8.2 x 2.9 cm)
  • Weight: 7.6 oz (800 mAh battery)
  • Power: 400 MHz 2443 processor
  • Diagonal Display: size: 4.3 in
  • Resolution: 150 fl LCD (480 X 272 pixels)
  • Memory: 4 gigabyte data card
  • Certifications: DO-178B
  • GPS Base Display Unit - AV8OR
  • WxWorx WR-10BT Portable Weather Receiver (Bluetooth Kit)
  • 800mAh Battery
  • 12V-28VDC adapters
  • 120/220VAC adapters
  • PC/USB cable
  • Aircraft Yoke Mount and Automotive Windshield
  • Carrying bag
  • Earphone
  • CD User’s Manual and Quick Reference User’s guide
