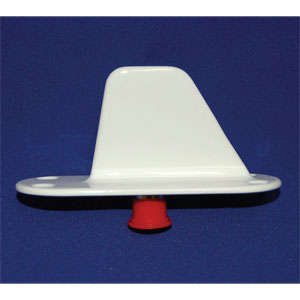

This lightweight, high speed, all metal 960 to 1220 MHz antenna is suitable for installation on all piston, turboprop, and turbine airframes including Air Transport Category aircraft.
It is ideal for aircraft with Mode S transponders and is approved under TSO C66c and ETSO 2C66b.
- DC grounded
- Omnidirectional patterns
- 1dB forward gain enhancement.
- FREQUENCY: 960-1220 MHz
- POLARIZATION: VERTICAL
- LIGHTNING PROTECTION: DC GROUNDED
- PATTERN: OMNI-DIRECTIONAL
- IMPEDANCE: 50 OHMS
- VSWR: 1.8:1 MAX @ 960-1220 MHz
- 1.42:1 MAX @ 1000-1100 MHZ
- RF POWER: 250 WATTS, PULSE 3 KW
- CONNECTOR: TYPE C, FEMALE
- MATERIAL: A380 ALUMINUM ALLOY CASTING
- FINISH: POLYURETHANE ENAMEL, WHITE
- WEIGHT: 4 OZ. MAX.
- OPERATING TEMP: -550C TO +850C
- GROUND SURVIVAL TEMP: -550C TO +850C
- ALTITUDE: 55,000’
- TSO: C66c
- ETSO: 2C66b
