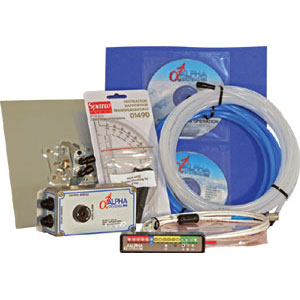

The Alpha Systems AOA electronic kit includes everything needed to install an angle of attack display in any aircraft. This kit includes probe, probe mounting plate, all fittings, 21 feet of hoses, AOA interface module with audio beeper, power cord and 4" bar graph LED vertical display.
The Alpha Systems AOA system was primarily designed as a standalone device to improve operational safety of airplanes by increasing pilot awareness during operations at high angles of attack. This AOA system meets the stated objective of the FAA’s Advisory Circular, AC23.1309-1C, “to improve the safety of the airplane fleet by fostering the incorporation of both new technologies that address pilot-error and weather related accidents and those technologies that can be certified affordably.”
The Alpha Systems AOA instrument utilizes differentelectronic displaysial pressure measured at the probe to convey reliable, instantaneous and continuously variable angle of attack information that is accurate regardless of aircraft weight, temperature or altitude.
Calibration of the Alpha Systems AOA is set in-flight at Optimum Alpha Angle (OAA) with a push of a button. Highly identifiable LEDs stay in your peripheral vision to identify your aircraft’s AOA for stall, Vx, Vy, Vapp etc.
- Provides accurate stall indication and recovery guidance
- Not affected by temperature, altitude, or aircraft weight
- Accurately know and control the angel of attack so you can fly a more stable approach and land with less kinetic energy
- Enables the pilot to maximize their aircraft's performance during normal and emergency operations
- Designed to improve operational safety of airplanes by increasing pilot awareness during operations at high angles of attack
- Provides instantaneous indication of aircraft AOA during all phases of flight
- The entire alpha systems AOA kit weighs less than two pounds
- A standalone device- works on 12-28 volt DC systems and requires only 180mA of power
- Dimensions: 4.375"L x 1.00"W x 1.00"D
