Advanced Capabilities in a Portable Package

  • Rugged, purpose-built portable navigator with built-in GPS/GLONASS receiver and 5-inch sunlight-readable screen
  • Intuitive, simple touchscreen operation and single power button make getting around the display a cinch
  • 3D Vision perspective view shows terrain, obstacles, airport environment, optional traffic, nearest airport and more
  • Wireless cockpit connectivity via Connext® streams ADS-B weather¹ and advanced traffic from compatible devices
  • Cut the cord and database prices with Wi-Fi® database downloads and the affordable Garmin Navigation Database

Awareness in Your Hand

The aera 660 aviation portable puts the latest Garmin technology in the palm of your hand, and it carries on our tradition of creating innovative navigators that go way back to the beginning of handheld aviation GPS. While aera 660 is light, compact and fits in any flight bag, it’s also packed with capabilities. As a dedicated navigator, it quickly and reliably acquires GPS and GLONASS satellite constellations and combines advanced navigation tools with rich, interactive, dynamically drawn aviation maps. And it displays it all on a bright, sunlight-readable 5-inch diagonal capacitive touchscreen display.
The icons on the aera 660 are instantly familiar to anyone who’s used a Garmin GTN™ touchscreen GPS/NAV/COMM, G5000® integrated flight deck or even the Garmin Pilot™ app, and the intuitive interface allows you to quickly pan across the map screen, pinch to zoom and more. Meanwhile, the power button on the top accesses quick settings, including portrait or landscape orientation, volume and brightness. And aera 660 comes with a snap-in style powered mount for easy transportation between your aircraft and home.

Complete Flight Mapping

The aera 660 aviation portable comes preloaded with detailed flight mapping, terrain and obstacles alerting, U.S., European and Canadian SafeTaxi® charts and AOPA Airport Directory or optional AC-U-KWIK global airport directory to put a wealth of resources right at your fingertips — including local fuel prices (U.S. only). The graphical Terrain page offers both overhead and vertical profile views of the topography beneath you. Switch to IFR map mode to display and navigate on high or low enroute airways, and use your touchscreen map cursor to reference MEAs (Minimum Enroute Altitudes) and distances between intersections. The aera 660 even provides vertical navigation (VNAV) guidance to simplify en-route transitions.

You’ll stay aware of special airspace activity with more than 650 parachute drop zone details (U.S. only) and get 1-touch airspace information. Garmin Smart Airspace™ guidance conveniently highlights the airspace nearest your current altitude and de-emphasizes non-pertinent airspace so you can quickly identify your location relative to the airspace around you. And, of course, the aera 660 includes our signature direct-to and nearest-airport navigation.

Connect With Your Panel

With an optional power/data cable (sold separately), the aera 660 connects with your Garmin avionics to accept flight plans from your GTN 750/650 and GNS 530W/430W navigators, as well as upload frequencies to the standby position of your GTR 200 Comm radio, GTR 225 Comm radio or GNC 255 NAV/COMM radio. It also provides your Garmin NAV/COMM radios with the GPS position source required to look up nearest frequencies.

ADS-B Without Wires

Using Bluetooth® connectivity via Garmin Connext technology, the aera 660 easily interfaces with compatible devices to cut the clutter in your cockpit and improve your flying experience. With a Garmin GDL® 39 portable ADS-B receiver or GTX 345 all-in-one ADS-B transponder, you can access and display ADS-B subscription-free weather¹ and advanced traffic alerts, including TargetTrendTM relative motion tracking and TerminalTrafficTM, so you’re aware of potential conflicts in busy terminal airspace. It even allows wireless control of Garmin VIRB® action cameras to start and stop recording and capture photos.

Get 3D Perspective

Revolutionary 3D Vision technology gives you a virtual 3-D behind-the-aircraft perspective view of surrounding terrain derived from GPS/GLONASS and the onboard terrain database. Slide your finger across the touchscreen to rotate the view and show land and water features, obstacles, runways and airport signposts in relative proximity to the aircraft. And when you connect aera 660 to an attitude source through a Flight Stream 210, a GDL 39 series portable ADS-B data link or a GTX 345 ADS-B transponder, Garmin SVX synthetic vision and attitude command bars are automatically added to your display.

Plus, with its forward-looking terrain avoidance capability, the aera 660 predicts in advance where towers or obstacles may exist and shades the landscape with amber or red overlays to indicate those areas. Also, get help flying clear of conflicts with Garmin WireAware™ wire-strike avoidance technology, which graphically overlays Hazardous Obstacle Transmission (HOT) lines that span rivers and canyons right on the moving map page, for the U.S. as well as in some locations in both Canada and Mexico. Touch the wire to display both MSL and AGL heights, and see color-coded obstacle alerting depending on your distance to the hazard. An optional full database that includes all powerlines is also available.

Stay Up to Date With Garmin

With the aera 660, you can cut the cord — and your database prices. You can update databases via Wi-Fi instead of connecting to a computer, and stay current throughout the year with a single, affordable annual subscription that includes all the databases you need, including the Garmin Navigation Database (U.S., Canada, Mexico-version only).

All-in-one Functionality

The aera 660 fulfills the role of either a Class I or Class II electronic flight bag, greatly reducing the need to rely on paper charts in the cockpit. U.S. geo-referenced VFR sectional and IFR enroute charts come preloaded to show your aircraft’s position overlaid directly on the relevant chart, and optional European and Canadian VFR and IFR charts and airport diagrams are also available.

When in IFR map mode, the aera 660 can display victor airways, jet routes, leg distance and more, similar to traditional enroute charts. Plus, pilots who prefer Jeppesen charts and diagrams can use built-in ChartView capability, which uses Jeppesen’s extensive library to provide global geo-referenced charting capabilities. European users receive European VFR Map enhancements to see even more visual reference points, including borders, lakes, roads, grasslands, parks and more.

In a Class by Itself

With its long list of features, the aera 660 combines many of the capabilities of panel-mounted avionics with a value-packed, purpose-built package. It’s a dedicated partner that’s ready to fly, right out of the box.

¹ Limited to coverage in the U.S.

Wi-Fi is a registered trademark of the Wi-Fi Alliance. Bluetooth is owned by the Bluetooth SIG, Inc.

  • Rugged and robust purpose-built portable aviation navigator and much more with built-in, fast acquiring GPS and GLONASS and 5-inch sunlight-readable display
  • Intuitive and simple touchscreen operation and a single power button make getting around the display a cinch
  • Cut the cord and database prices with Wi-Fi® database downloading as well as even more affordable Garmin Navigation Database for operations in the U.S., Mexico, and Canada
  • Wireless cockpit connectivity via Connext™ streams ADS-B weather and advanced traffic from compatible devices like the GTX 345 ADS-B transponder and GDL 39 ADS-B receivers
  • Displays and alerts U.S. power lines using Garmin’s WireAware™ wire-strike avoidance technology
  • 3D Vision perspective view shows terrain, obstacles, airport environment, optional traffic, nearest airport and more
Other Key Features
  • Keep in sync with avionics connectivity and integration
  • Connext™ wireless capability streams subscription-free ADS-B weather and advanced traffic from compatible Garmin avionics like the GTX 345 ADS-B transponder and portable GDL 39 ADS-B receivers
  • Wired connectivity provides even more powerful integration possibilities
  • Ability to provide continuous aircraft power to the aera 660 and to receive audible alerts using the aircraft audio system
  • GTX 345 provides subscription-free ADS-B weather and advanced traffic display
  • GTN 750/650 series and GNS 430W/530W series adds the ability to send the flight plan to the aera 660
  • GNC 255/GTR 225 radios offers the ability to tune the standby radio frequency using the aera 660 and likewise the aera 660 provides the radio with the GPS source required to access the nearest frequency selection
  • Compatible with select autopilots and other devices using NMEA format
  • When paired with a compatible ADS-B in receiver, the aera 660 displays advanced traffic features, including TargetTrend™ relative motion tracking and TerminalTraffic™.
  • TargetTrend provides a faster, more intuitive way of judging target trajectories and closure rates in relation to your aircraft's position.
  • TerminalTraffic provides pilots with the most comprehensive picture of ADS-B-equipped aircraft and ground vehicles in the airport environment. ADS-B-equipped aircraft in-flight are easily distinguished from ground vehicles and taxiing aircraft, which are displayed using distinct colors and symbols.
  • Snap-in style mount helps make transportation easy between the aircraft and your home
  • Rich, interactive, dynamically drawn aviation mapping with powerful advanced 3-demensional vertical navigation (VNAV) flight planning, Smart Airspace™, and more
  • Garmin’s signature direct-to and nearest functions are just a tap away
  • Visual and audio alerts of terrain, obstacle, and optional traffic help keep you more aware of your surroundings
  • Wirelessly access and control Garmin VIRB® action cameras
  • Class I/II EFB electronic flight bag functionality provides access to global charting options, weight-and-balance, E6B flight calculators and more
  • Comprehensive coverage around the globe with navigation data, airport directory, IFR/VFR charts, fuel prices, FliteCharts, SafeTaxi and more as well as, access to optional Jeppesen charting including European VFR terminal charts (Bottlang charts)
  • Optional enhanced basemap in Europe provides richer context to key landmarks for VFR operations
  • Easily and quickly navigate direct-to street intersections with optional City Navigator database
  • Provides historical tracks and flight logs

  • Physical Dimensions: 5.5”W x 3.4”H x .8”D (14.1 x 8.7x 2.1 cm)
  • Display Size: 4.35"W x 2.61"H (11.1 x 6.6 cm); 5.08" diag (12.9cm)
  • Display Resolution: 480W x 800H
  • Display Orientation: Portrait and Landscape
  • Display Type: Touchscreen WVGA color TFT with backlight
  • Weight: 8.64 ounces (245 g), with battery

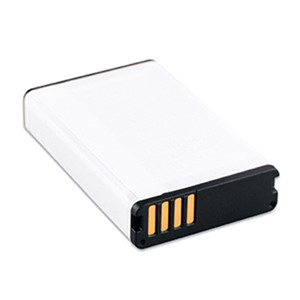

  • Battery: Removable, rechargeable lithium-ion
  • Battery Life: Up to 4 hours during typical use
  • GPS Receiver: SBAS/WAAS/GLONASS
  • GPS Antenna: Built-in, optional external antenna (not included)
  • Removable Memory Slot: Yes (microSD™ compatible)
  • Wireless Connectivity: Wi-Fi, Bluetooth, ANT+

  • aera 660
  • Yoke mount with power cable
  • Battery
  • AC adapter
  • USB cable
  • Quick start manual and related documentation
